Diabetic Foot Lab (DFL)
DFL - Pro
- Accurate 5-in-1 Neuropathy Assessment
- VASOPAD ABI + TBI Analysis
- Advanced Plantar Pressure Mapping
- High-Resolution 2D Foot Imaging
DFL - Standard
- Accurate 5-in-1 Neuropathy Assessment
- VASOPAD ABI for PAD Detection
- Advanced Plantar Pressure Mapping
- Cloud-Based Clinical Reporting
DFL - Lite
- Large Fiber Neuropathy Assessment
- Hand held vascular doppler 8MHz
- Pressure Mapping with Digital Harris Mat
- Cloud-Based Clinical Reporting
DFL - Pro
Comprehensive Neuropathy Assessment with NeuroTouch Pro
- Performs 5-in-1 testing: monofilament, vibration, thermal (hot & cold), and skin temperature.
- AI-powered interpretation delivers standardized reports via a secure cloud platform.
- Helps detect large fiber dysfunction early, improving intervention timing.
- Enables accurate, repeatable results for consistent neuropathy evaluation.
DFL - Pro
Comprehensive Neuropathy Assessment with NeuroTouch Pro
- Performs 5-in-1 testing: monofilament, vibration, thermal (hot & cold), and skin temperature.
- AI-powered interpretation delivers standardized reports via a secure cloud platform.
- Helps detect large fiber dysfunction early, improving intervention timing.
- Enables accurate, repeatable results for consistent neuropathy evaluation.
Dual-Mode Vascular Testing with VASOPAD ABI & TBI
- Simultaneously calculates ABI and TBI using automated pressure and plethysmography.
- Detects PAD even in cases of arterial calcification through toe-pressure analysis.
- Cloud-based data sync enables remote review and longitudinal tracking.
- Minimizes human error with fully guided, one-button operation.
Advanced Plantar Pressure Mapping
- Captures both static stance and dynamic gait using high-density pressure sensors.
- Identifies areas of overload linked to ulcer risk or biomechanical imbalance.
- Visual heatmaps support preventive offloading and footwear guidance.
- Enables objective monitoring before and after treatment interventions.
Advanced Plantar Pressure Mapping
- Captures both static stance and dynamic gait using high-density pressure sensors.
- Identifies areas of overload linked to ulcer risk or biomechanical imbalance.
- Visual heatmaps support preventive offloading and footwear guidance.
- Enables objective monitoring before and after treatment interventions.
High-Resolution 2D Foot Imaging
- Accurately measures foot length, width, arch height, and shape.
- Ideal for custom orthotic fabrication and deformity screening.
- Captures structural changes over time for personalized foot care planning.
- Seamless integration with digital patient records and device prescriptions.
Portable, Cloud-Connected System
- All components are wireless, rechargeable, and compact for multi-room or outreach use.
- Real-time syncing to a unified clinical dashboard for easy access and sharing.
- Reports include numeric scores, trend graphs, and annotated visuals.
- Built for clinical mobility without compromising diagnostic accuracy.
DFL - Standard
5-in-1 Large Fiber Neuropathy Testing with NeuroTouch Pro
- Combines tactile, vibration, temperature, and skin sensitivity measurements in one device.
- AI-driven scoring ensures consistent, operator-independent assessments.
- Cloud integration provides instant result access for follow-up care.
- Enhances workflow by digitizing sensory documentation and comparisons.
DFL - Standard
5-in-1 Large Fiber Neuropathy Testing with NeuroTouch Pro
- Combines tactile, vibration, temperature, and skin sensitivity measurements in one device.
- AI-driven scoring ensures consistent, operator-independent assessments.
- Cloud integration provides instant result access for follow-up care.
- Enhances workflow by digitizing sensory documentation and comparisons.
VASOPAD ABI Screening with VASOPAD ABI
- Measures bilateral arm and ankle pressures using plethysmography-based sensors.
- Calculates ABI quickly and flags PAD risk in color-coded reports.
- Designed to reduce test time and simplify technician training.
- Cloud-enabled data storage ensures traceability and remote accessibility.
Digital Plantar Pressure Scanner
- Generates real-time plantar load maps during standing and walking.
- Highlights shear and peak pressure zones for ulcer prevention.
- Assists in orthotic evaluation and therapeutic shoe prescription.
- Data-rich outputs support clinical decisions and documentation.
Digital Plantar Pressure Scanner
- Generates real-time plantar load maps during standing and walking.
- Highlights shear and peak pressure zones for ulcer prevention.
- Assists in orthotic evaluation and therapeutic shoe prescription.
- Data-rich outputs support clinical decisions and documentation.
Integrated Cloud-Based Reporting
- Auto-generates shareable PDF reports with test results and clinical summaries.
- Access via browser-based dashboard for anytime, anywhere use.
- Secure and compliant with healthcare data standards.
- Reduces paper dependency and supports EMR integration.
Fully Portable & Wireless Design
- Compact modules connect wirelessly to tablets or PCs.
- Long battery life and cable-free setup support point-of-care flexibility.
- Easy to carry, deploy, and manage across exam rooms or remote sites.
- Supports rapid testing without compromising diagnostic detail.
DFL - Lite
Focused Large Fiber Neuropathy Screening with NeuroTouch Lite
- Measures vibration, tactile, and thermal perception to assess sensory deficits.
- Supports early identification of neuropathic risk in diabetes management.
- AI-assisted analysis provides instant, cloud-synced diagnostic reports.
- Helps standardize testing across clinicians and follow-up periods.
DFL - Lite
Focused Large Fiber Neuropathy Screening with NeuroTouch Lite
- Measures vibration, tactile, and thermal perception to assess sensory deficits.
- Supports early identification of neuropathic risk in diabetes management.
- AI-assisted analysis provides instant, cloud-synced diagnostic reports.
- Helps standardize testing across clinicians and follow-up periods.
Quick ABI Evaluation with VASOPAD ABI
- Calculates ankle-brachial index from bilateral pressure readings in minutes.
- Reduces subjectivity with automatic analysis and plethysmography integration.
- Detects PAD risk early and supports triage or referral decisions.
- Streamlined interface and cloud storage improve clinical efficiency.
Static Pressure Analysis via Harris Mat
- Measures vertical pressure across the plantar surface in a standing position.
- Detects high-risk areas prone to breakdown or ulcer formation.
- Visual footprint maps help guide offloading and footwear choices.
- Enables repeat testing and longitudinal risk tracking.
Static Pressure Analysis via Harris Mat
- Measures vertical pressure across the plantar surface in a standing position.
- Detects high-risk areas prone to breakdown or ulcer formation.
- Visual footprint maps help guide offloading and footwear choices.
- Enables repeat testing and longitudinal risk tracking.
Unified Cloud-Based Workflow
- Test data from all modules synced to a single secure portal.
- Reports include numeric trends, zone highlights, and interpretation.
- Easily downloadable, shareable.
- Facilitates continuity of care with centralized access.
Compact, Portable Diagnostic Kit
- Lightweight components designed for mobility and fast setup.
- Wireless communication eliminates cable clutter in busy clinics.
- Battery-powered devices suited for continuous use across shifts.
- Perfectly balances accessibility, portability, and diagnostic reliability.
|
Feature / Capability
|
DFL – Pro
|
DFL – Standard
|
DFL – Lite
|
|---|---|---|---|
|
Neuropathy Testing
|
NEURO TOUCH Pro (5-in-1)
|
NEURO TOUCH Pro (5-in-1)
|
NEURO TOUCH Lite (2-in-1)
|
|
Large Fiber Assessment
|
Yes
|
Yes
|
Yes
|
|
Small Fiber Assessment (Thermal)
|
Yes
|
Yes
|
No
|
|
Skin Temperature / Microvascularity
|
Yes
|
Yes
|
Yes
|
|
Vascular Screening
|
VASOPAD ABI + TBI + PVR
|
VASOPAD ABI + PVR
|
Handheld Doppler
|
|
Toe-Brachial Index (TBI)
|
Yes
|
Yes
|
Yes
|
|
Plantar Pressure Analysis
|
OHM 3000 – Static + Dynamic Mapping
|
OHM 3000 – Static + Dynamic Mapping
|
Harris Mat – Static Pressure
|
|
Digital Foot Imaging
|
DIME – 2D Imaging
|
No
|
No
|
|
Remote Physician Review
|
Yes
|
Yes
|
Yes
|
|
Ideal For
|
Specialty foot centers, podiatry, wound care, academic research
|
Hospitals, multispeciality clinics, endocrinology centers
|
PHCs, CSR camps, mobile screening, basic OPD
|
Neuropathy Assessment
NEURO TOUCH Pro (5-in-1)
⦁ Performs tactile, vibration, hot/cold thermal, and skin temperature assessments
⦁ Detects both large and small fiber neuropathy
⦁ Early detection, standardized scoring, longitudinal digital reporting
⦁ Best suited for hospitals, diabetes centers, podiatry units, high-complexity screening
NEURO TOUCH Standard
⦁ Performs tactile, vibration, and thermal testing
⦁ Measures protective sensation and sensory dysfunction
⦁ Ideal for routine OPD and endocrinology clinics
NEURO TOUCH Lite (2-in-1)
⦁ Vibration + tactile assessment
⦁ Fast, portable, operator-independent screening
⦁ Ideal for community camps, PHCs, CSR programs, and remote care
Vascular Screening Solutions

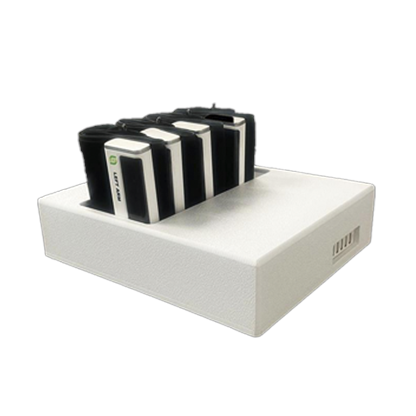

VASOPAD ABI + TBI + PVR
⦁ Highest diagnostic accuracy for Peripheral Artery Disease (PAD)
⦁ ABI for macrovascular flow, TBI for calcified vessels in diabetics, PVR waveform for hemodynamic profiling
⦁ Fully guided workflow, zero operator dependency
⦁ Best suited for specialty wound care, advanced diabetic-foot clinics, vascular units, and hospital OPD
VASOPAD ABI + PVR
⦁ ABI measurement for PAD detection and plethysmography waveform
⦁ Accurate, cloud-connected, operator-independent screening
⦁ Suitable for routine PAD triage, outpatient diabetes care, and multispeciality clinics
Hand-Held Doppler (Hi-Dop)
⦁ Surgical-grade audio Doppler for bedside vascular patency verification
⦁ Real-time blood flow sound with dual-frequency probes
⦁ Lowest learning curve & highest mobility
⦁ Perfect for emergencies, dressing rooms, field care, wound bedside checks
Plantar Pressure Solutions

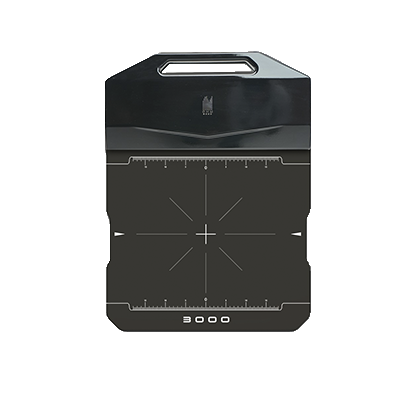

OHM 3000 (Dynamic + Static Mapping)
⦁ Captures stance and gait pressure distribution in real time
⦁ Detects overload, shear, and biomechanical imbalance
⦁ Enables orthotic prescription, preventive offloading, and ulcer risk mapping
⦁ Best for podiatry, orthotic labs, biomechanics research, and DFU monitoring

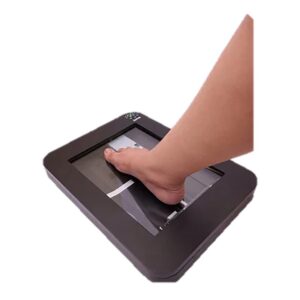

Harris Mat (Static Pressure Only)
⦁ Measures vertical load on plantar surface during standing
⦁ Detects high-risk zones and guides footwear/offloading
⦁ Basic, portable, cost-efficient
⦁ Ideal for screening camps and PHCs

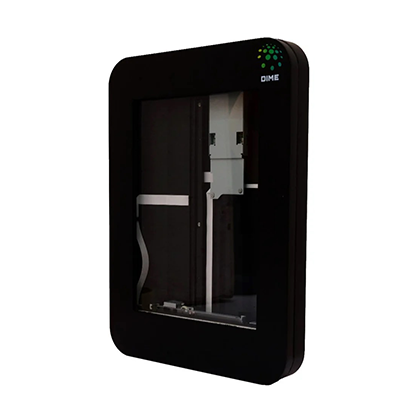

DIME — Digital Foot Imaging
⦁ High-resolution 2D imaging for length, width, arch structure, and deformity screening
⦁ Tracks structural changes longitudinally
⦁ Aids in orthotic fabrication, deformity management, and DFU follow-up
⦁ Best for specialty clinics, podiatry labs, wound care
